Crack filling involves the process of repairing damaged surfaces by sealing cracks to prevent further deterioration. Crack filling is crucial in maintaining the integrity of pavements, driveways, and other structures. Over time, environmental factors such as moisture, temperature fluctuations, and traffic cause cracks to form, leading to more severe damage if not addressed promptly. Crack filling helps extend the life of the surface, ensuring a safer and more durable environment.
Crack types vary based on the cause, location, and severity of the damage. Whether it’s hairline cracks from surface wear or deeper, more structural cracks are caused by shifting foundations. Understanding the type of crack is essential for determining the appropriate repair method. Each type of crack requires a specific approach to ensure that the underlying issues are addressed and that the repair is long-lasting.
Filling materials are specially designed substances used to seal and repair cracks. These range from flexible rubberized compounds to durable epoxies, each chosen based on the surface material and the extent of the crack. Selecting the right filling material is key to ensuring a successful repair that withstand environmental and structural stresses over time.
Tools used for crack filling are critical for achieving a precise and effective repair. From simple caulking guns for small cracks to large crack-filling machines for extensive damage, the proper tools ensure the material is applied evenly and securely. The choice of tool depends on the size and type of crack, as well as the specific filling material being used.
The process of filling cracks involves a series of steps that ensure the repair is done correctly. Starting with cleaning the crack to remove debris, followed by the careful application of the filling material, and finishing with smoothing and curing, each step plays a vital role in achieving a successful repair. Following these steps ensures the crack is properly sealed, preventing further damage and preserving the surface.
Maintenance of filled cracks is essential for ensuring the longevity of the repair. Regular inspections, cleaning, and reapplying filler as needed help keep the surface in good condition and prevent new cracks from forming. Proper maintenance ensures that the filled cracks remain effective, providing long-lasting protection against further wear and tear.
What is Crack Filling?
Crack filling involves sealing cracks in pavement or concrete surfaces to prevent further damage. It includes using materials like asphalt or sealants to fill gaps and stop water, dirt, or debris from entering. Crack filling maintains the integrity of the surface, reduces the risk of larger cracks forming, and extends the lifespan of roads, driveways, or other structures, according to a study by Vargas-Nordcbeck, A., & Jalali, F. 2020, “Life-Extending Benefit of Crack Sealing for Pavement Preservation.” It is applied to cracks that are not too deep or wide and is a cost-effective preventive maintenance method.
Crack filling is widely applied in areas where pavement or concrete surfaces are prone to cracking. It is commonly used in road maintenance to address cracks on highways, streets, and parking lots, preventing water infiltration and extend the life of the asphalt. In residential and commercial settings, crack filling is used on driveways, sidewalks, and concrete floors to avoid further deterioration. It also finds application in industrial areas, such as warehouses or factories, where surface damage disrupt operations or pose safety hazards. By addressing minor cracks early, crack filling minimizes the need for more extensive and costly repairs in the future.

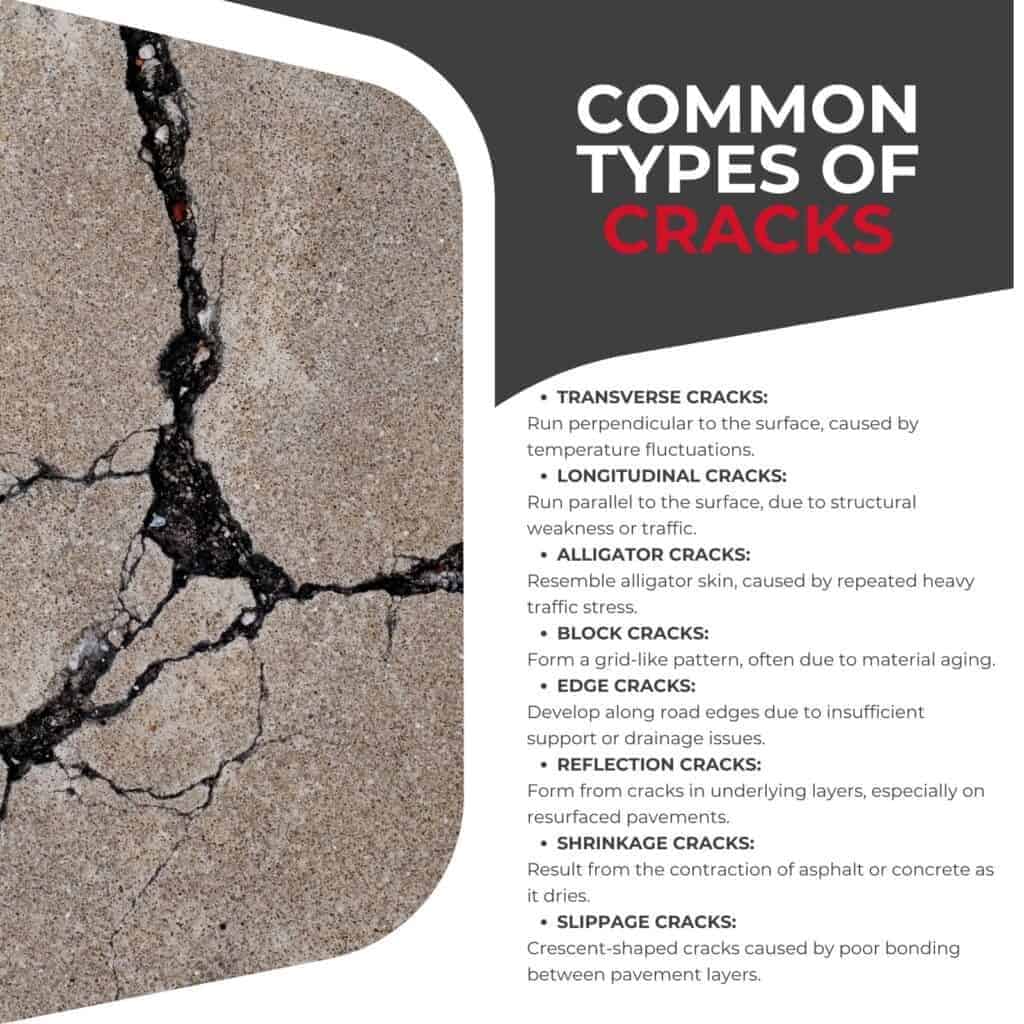

What are the Types of Cracks?
The types of cracks include transverse, longitudinal, alligator cracks and more. Transverse cracks run perpendicular to the surface and result from temperature changes. Longitudinal cracks, on the other hand, form parallel to the surface and are caused by structural weaknesses or heavy loads over time. Alligator cracks, also known as fatigue cracks, resemble the scales of an alligator and are the result of repeated traffic stress. Understanding the different types of cracks is essential for applying the correct repair methods, as each type requires a tailored approach to prevent further damage.
The 8 types of cracks, according to a study by Kvgd B et al. 2014, “Study On Different Types Of Cracks In Plain And Reinforced Concrete,” are as follows:
- Transverse Cracks
- Longitudinal Cracks
- Alligator (Fatigue) Cracks
- Block Cracks
- Edge Cracks
- Reflection Cracks
- Shrinkage Cracks
- Slippage Cracks
1. Transverse Cracks
Transverse cracks are a type of pavement crack that runs perpendicular to the direction of traffic flow. Transverse cracks are caused by temperature fluctuations, which result in the expansion and contraction of the pavement material. These cracks appear within a few years of the pavement’s life, especially in areas with significant temperature variations, according to a study by Chen J, Li H, Zhao Z. et al. 2022, “Investigation of transverse crack spacing in an asphalt pavement with a semi-rigid base.”
If left untreated, transverse cracks allow water to seep into the underlying layers, weakening the structure and leading to further deterioration. Roads, highways, and parking lots are particularly prone to transverse cracking. Repairing transverse cracks involves using hot-pour or cold-pour sealants, which prevent moisture infiltration and halt the progression of damage.
2. Longitudinal Cracks
Longitudinal cracks are pavement cracks that run parallel to the direction of traffic. Poor construction practices, heavy traffic loads, or natural aging cause them. Longitudinal cracks form along joints or the centerline of the pavement and appear within 2-5 years, depending on the quality of the installation, as studied by Yang S et al. 2020, “Investigation of Longitudinal Cracking in Widened Concrete Pavements”
If not addressed, longitudinal cracks allow water to enter and weaken the base layers of the pavement, leading to more severe structural issues. Roads and highways with heavy traffic are most prone to longitudinal cracks. Repair methods for longitudinal cracks include filling the cracks with asphalt-based sealants to prevent moisture from penetrating the surface and causing further damage.
3. Alligator Cracks
Alligator cracks, also known as fatigue cracks, are a type of pavement crack that resembles the scales of an alligator’s skin. They are caused by repeated heavy loads from traffic, leading to the weakening of the pavement over time. These cracks appear within 5-10 years, depending on the load-bearing capacity and usage of the pavement, according to a research article by Jain V et al. 2022, “Study on the formation of alligator crack and edge crack in high silicon grain oriented electrical steel during cold rolling.”
Alligator cracks are highly dangerous for the structure as they indicate severe deterioration in the subgrade, which, if not repaired, leads to complete pavement failure. Roads, highways, and parking lots with high traffic volumes are particularly susceptible. Repairing alligator cracks involves removing the damaged section of the pavement and performing full-depth patching, as sealants alone are insufficient.
4. Block Cracks
Block cracks are a type of pavement crack that forms a grid-like pattern, with cracks intersecting at right angles. These cracks are primarily caused by the aging of the pavement or poor construction materials that lack flexibility. Block cracks appear after 5-10 years, depending on the material quality and exposure to environmental conditions, according to a study by He X, Larsen R., et al. 2020, “Block cracking in surface coatings of polymeric substrates”
Though block cracks do not pose an immediate danger to the structure, they allow water infiltration, leading to base failure over time. Block cracks commonly occur in large paved areas like parking lots and residential streets. Block crack repair options include sealing the cracks with asphalt emulsion or other flexible sealants to prevent moisture from penetrating and weakening the pavement layers.
5. Edge Cracks
Edge cracks are pavement cracks that develop along the outer edges of roads or parking lots. These cracks are caused by insufficient support at the edges, poor drainage, or heavy traffic loads. Edge cracks form within a few years after construction, especially if the edges are not adequately reinforced, according to a study by Khalilabad, M.M., Perdahcıoğlu, S., Atzema, E. et al. 2023, “Initiation and growth of edge cracks after shear cutting of dual-phase steel.”
While not immediately dangerous, edge cracks expand and allow water to enter, leading to erosion and the eventual failure of the pavement. Roads without proper shoulders or those adjacent to soft soil are more prone to edge cracking. The repair of edge cracks involves filling the cracks with asphalt-based sealants and improving drainage or reinforcing the edges to prevent further cracking.
6. Reflection Cracks
Reflection cracks are a type of crack that forms in the surface layer of asphalt pavement when an underlying layer has cracks or joints. These cracks are caused by the movement or shifting of the underlying layers, which “reflect” up into the surface layer. Reflection cracks appear within a few years if there is significant movement or stress in the underlying layers, such as in areas with freeze-thaw cycles or heavy traffic, according to a study by Wu Y, Jiayue Xue J et al. 2023, “Research of reflective crack in asphalt pavement using SCB specimen and XFEM: From laboratory test to numerical simulation.”
While reflection cracks themselves are not immediately dangerous, they lead to water infiltration and further damage to the pavement structure. Repairing reflection cracks usually involves sealing them with rubberized or asphalt-based sealants or applying a crack relief layer before repaving to reduce the risk of recurrence.
7. Shrinkage Cracks
Shrinkage cracks are a type of crack that forms due to the contraction of concrete or asphalt as it dries and cures. These cracks are caused by improper mixing or curing of the material, leading to rapid moisture loss. Shrinkage cracks appear relatively soon after installation, within the first year, according to a study by Liu J, Qian Tian Q et al. 2021, “Evaluation Method and Mitigation Strategies for Shrinkage Cracking of Modern Concrete.” While they are not structurally dangerous, they affect the aesthetic appearance of the surface and allow water penetration, leading to long-term deterioration.
Shrinkage cracks are most common in newly constructed concrete slabs, sidewalks, and parking lots. To repair shrinkage cracks, flexible sealants or epoxy fillers restore the surface and prevent water infiltration.
8. Slippage Cracks
Slippage cracks are a type of pavement crack that occurs when the top layer of asphalt loses adhesion to the underlying layers, causing the surface to slip. These crescent-shaped cracks are caused by poor bonding during construction or the use of low-quality materials. Slippage cracks appear within a few years, especially in areas subjected to braking or turning forces, as studied by Chen DH et al. 2009, “Slippage Failure of a New Hot-Mix Asphalt Overlay.”
While not immediately hazardous, slippage cracks worsen over time and lead to surface deformation or potholes. Roads with high traffic volumes or sharp turns are particularly prone to slippage cracks. Repairing these cracks involves removing the affected area and applying a new asphalt layer with proper bonding techniques to ensure long-lasting adhesion.

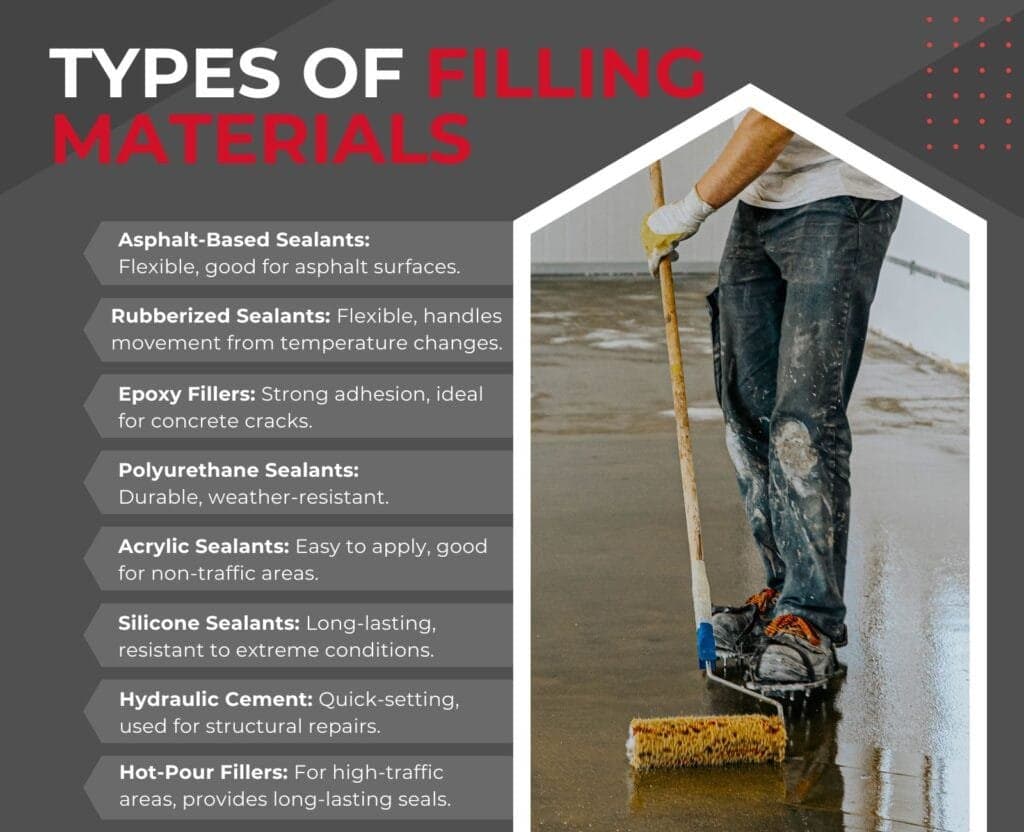

What are the Types of Filling Materials Used to Fill Cracks?
The types of filling materials used to fill cracks include asphalt-based sealants, rubberized sealants, and epoxy fillers. Asphalt-based sealants are commonly used for filling cracks in asphalt pavements. Rubberized sealants are ideal for cracks that experience significant movement, such as those caused by thermal expansion and contraction. Epoxy fillers are used for more rigid surfaces, like concrete, as they offer strong adhesion and durability, especially in structural cracks.
These types ofc crack filling materials prevent moisture infiltration, protect the underlying layers, and extend the lifespan of roads, driveways, and other paved surfaces by sealing cracks effectively, according to a book edited by Delatte N et al. 2009, “A volume in Woodhead Publishing Series in Civil and Structural Engineering” Failure, Distress and Repair of Concrete Structures.” The choice of material depends on the crack type, surface material, and environmental conditions.
The types of filling materials used to fill cracks are as follows:
- Asphalt-Based Sealants: Asphalt-based sealants are flexible materials used to fill and seal cracks in asphalt pavements. They are beneficial for their ability to adapt to the movement of the pavement, providing a durable and water-resistant barrier, as studied by Li J, Sha A., et al. 2022, “Evaluations of Asphalt-Based Sealant Used in Concrete Caulking: Rheology, Adhesion Properties, and Microstructures.” To use asphalt-based sealants, clean the crack of debris, apply the sealant directly into the crack, and smooth it out with a tool. These sealants are highly durable and effective for protecting against moisture and preventing further deterioration in high-traffic areas.
- Rubberized Sealants: Rubberized sealants are made from a blend of rubber and asphalt and are designed to fill cracks that experience significant movement due to thermal expansion and contraction. They offer the advantage of high elasticity and flexibility, which helps them accommodate shifting surfaces, as studied by Mazumder M et al. 2019, “Cost effectiveness of crack treatment methods: A field study.” To apply rubberized sealants, clean the crack thoroughly, apply the sealant, and use a trowel or similar tool to smooth it. Rubberized sealants are highly durable, maintaining their flexibility over time and effectively resisting environmental stresses.
- Epoxy Fillers: Epoxy fillers are resin-based compounds used to fill cracks in concrete and other rigid surfaces. They are known for their strong adhesion and high compressive strength, making them ideal for structural repairs, according to a study by Griffin S et al. 2017, “Evaluation of Epoxy Injection Method for Concrete Crack Repair.” To use epoxy fillers, clean the crack, mix the epoxy resin according to the manufacturer’s instructions, and apply it to the crack using a caulking gun or similar tool. Once cured, epoxy fillers are very durable and resistant to moisture, chemicals, and heavy loads.
- Polyurethane Sealants: Polyurethane sealants are flexible, durable materials used to seal cracks in both concrete and asphalt surfaces. They offer excellent adhesion and resistance to weathering and UV radiation, as studied by Nečasová B., et al. 2018, “Performance of selected polyurethane joint sealants in concrete structures.” To use, clean the crack, apply the sealant using a caulking gun, and tool it to ensure proper adhesion. Polyurethane sealants are highly durable, maintaining their flexibility and integrity over time and under varying environmental conditions.
- Acrylic Sealants: Acrylic sealants are water-based materials used for filling cracks in concrete and masonry. They provide a flexible, paintable finish and are easy to apply. To use acrylic sealants, clean the crack, apply the sealant with a caulking gun, and smooth it out with a tool. Acrylic sealants are moderately durable, suitable for non-traffic areas, and provide a good seal against moisture but require periodic reapplication in high-stress areas.
- Silicone Sealants: Silicone sealants are high-performance materials known for their excellent adhesion to various surfaces and resistance to extreme temperatures and weather conditions. They are particularly beneficial for areas exposed to high moisture or temperature fluctuations. To apply silicone sealants, clean the crack, use a caulking gun to apply the sealant, and tool it for a smooth finish. Silicone sealants are highly durable and provide long-lasting protection against moisture and environmental stress.
- Hydraulic Cement: Hydraulic cement is a fast-setting material used to repair and fill cracks in concrete. It sets and hardens quickly when exposed to water, making it suitable for fixing leaks and structural cracks, according to a study by Rahul Goushis R et al. 2022, “Effectiveness of polymeric and cementitious materials to secure cracks in concrete under diverse circumstances.” To use hydraulic cement, mix it with water, apply it to the crack, and smooth it out. Hydraulic cement cures rapidly and provides a strong, durable repair, though it is best used for structural repairs rather than surface sealing.
- Hot-Pour Crack Fillers: Hot-pour crack fillers are thermoplastic materials that are heated and poured into cracks in asphalt surfaces. They offer a durable and flexible repair solution, ideal for high-traffic areas, according to a study by Yıldırım Y et al. 2007, “Field performance comparison of asphalt crack-filling materials: Hot pour versus cold pour” To use hot-pour crack fillers, heat the filler according to the manufacturer’s instructions, pour it into the crack, and level it with a squeegee or similar tool. Hot-pour crack fillers are highly durable, providing a long-lasting seal that withstands heavy traffic and environmental conditions.
What Tools Are Used to Fill Cracks?
The tools used to fill cracks include caulking guns, crack-filling machines, and trowels. Caulking guns are essential for applying sealants and fillers with precision, allowing for easy control of the flow and application of materials into cracks. Crack-filling machines are designed for larger-scale applications, such as on roads or parking lots, and they heat and apply materials like hot-pour fillers efficiently. Trowels are used to smooth and finish the surface of the filler, ensuring a flush and even repair. Each tool is crucial in achieving a clean, effective, and durable crack repair tailored to the size and type of crack being addressed.
The tools used to fill cracks, as mentioned in a report by Lee J et al. 2015, “Crack Sealing and Filling: Best Practices,” are as follows:
- Caulking Gun
- Crack Filling Machine
- Trowel
- Putty Knife
- Squeegee
- Crack Chaser
- Wire Brush
- Heat Gun

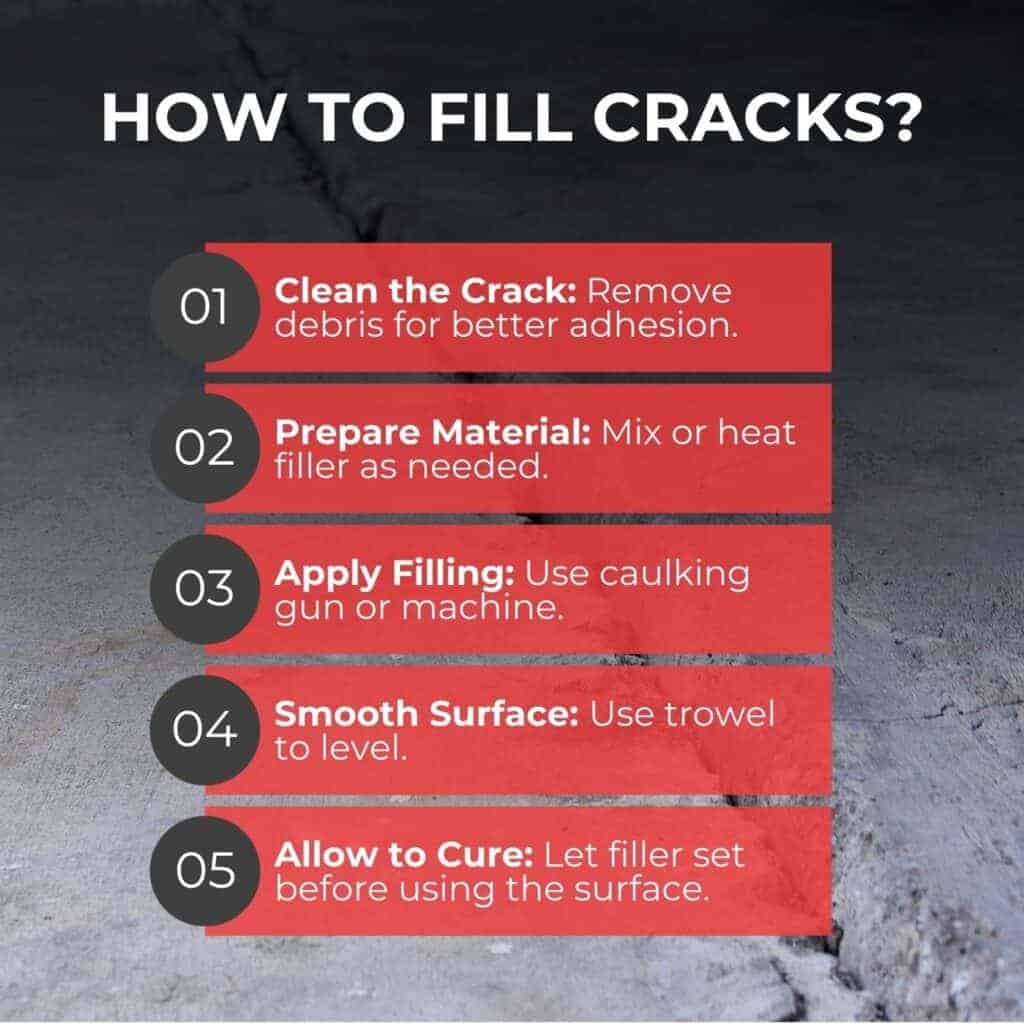

How to Fill Cracks?
To fill cracks, proper preparation, the right filling material, and effective application tools are required.
The crack-filling process, according to a book edited by Delatte N et al. 2009, “A volume in Woodhead Publishing Series in Civil and Structural Engineering” Failure, Distress and Repair of Concrete Structures.” involves several key steps, as follows:
- Clean the Crack: The first step is to remove debris, dirt, and loose material from the crack by using a wire brush, vacuum, or air compressor. This ensures that the filling material adheres properly to the surface and that no contaminants weaken the repair. Cleaning the cracks is essential for achieving a durable and effective seal, as it provides a clean surface for the filler to bond with.
- Prepare the Filling Material: Next, mix or heat the filling material according to the manufacturer’s instructions. This involves heating a hot-pour filler, mixing an epoxy, or shaking a sealant. Proper preparation ensures that the filler achieves the correct consistency and properties for optimal performance. Preparing the filling material well is crucial for the effectiveness of the crack repair, as improperly prepared material leads to poor adhesion or premature failure.
- Apply the Filling Material: Introduce the prepared filling material into the crack using a caulking gun for sealants, a crack-filling machine for large areas, or a putty knife for smaller cracks. Fill the crack completely and slightly overfill to allow for settling. This provides a barrier that seals the crack against moisture, debris, and further deterioration. This step directly addresses the crack, filling it with material that prevents further damage and extends the surface’s lifespan.
- Smooth the Surface: Level and finish the applied material to ensure a flush surface using a trowel, squeegee, or putty knife. This provides a neat appearance and proper adhesion, which prevent water from seeping under the filler. This step is important for the aesthetic finish and functionality of the repair, ensuring that the filled crack blends seamlessly with the surrounding surface.
- Allow to Cure: Let the filling material set and harden according to the manufacturer’s recommendations, avoiding the use of the surface until the filler has fully cured. This ensures that the filler achieves its full strength and effectiveness, providing a durable repair. Curing is essential for the longevity and performance of the repair, as premature use compromise the integrity of the filler.
How to Maintain Filled Cracks?
To maintain filled cracks, regular inspection, proper cleaning, and timely reapplication of sealants are required. Regularly inspecting the filled cracks ensures early detection of any wear, erosion, or new cracks that have formed. Cleaning the surface of debris, dirt, and moisture prevents foreign materials from compromising the integrity of the filler. Additionally, if the filler shows signs of shrinking or peeling, reapplying the appropriate sealant prevent further deterioration. These maintenance practices are essential for ensuring that the cracks remain sealed, preventing water infiltration, and prolonging the lifespan of the surface. Consistent maintenance also reduce the need for costly repairs in the future.
What is the difference between crack filling and crack sealing?
The main difference between crack filling and crack sealing is the purpose and type of material used, as studied by Mazumder M et al. 2019, “Crack sealing vs crack filling: A state of the art review and analysis.” Crack filling is used for non-working cracks, which are cracks that do not experience significant movement. The materials used in crack filling, such as asphalt-based or rubberized fillers, are less flexible and primarily serve to prevent water and debris from entering the crack.
On the other hand, crack sealing is used for working cracks, which are subject to expansion and contraction due to temperature changes. Crack sealing involves the use of flexible, rubberized sealants that accommodate the movement of the crack over time. While both methods help prevent further damage, crack sealing is more effective for long-term solutions in areas with significant climate variations or heavy traffic.
What are the best materials to use for crack filling in concrete, and how do they relate to resurfacing projects?
Common concrete resurfacing materials include epoxy, polyurethane, and cementitious fillers for crack filling. These materials are chosen based on the type and severity of the crack:
- Epoxy and polyurethane: Work well for larger cracks as they are durable and flexible.
- Cementitious fillers: Suitable for more superficial cracks before a resurfacing project. When resurfacing concrete, it’s essential to fill any existing cracks with the right material to prevent future cracking and ensure a smooth, even surface. Crack filling ensures the longevity of the resurfacing layer, preventing moisture or further damage.
How does weather affect the crack-filling process?
Weather affects the crack-filling process by influencing the filling materials’ performance and the repair’s success. Ideal conditions for crack filling are dry and moderately warm temperatures, between 50°F and 80°F, as studied by Fang Y et al. 2022, “Effect of humid and thermal environments on the performance of an epoxy resin pavement filling joint material.” Cold weather causes the filling material to harden too quickly, reducing its ability to bond properly with the crack.
In contrast, extremely hot conditions cause the material to over-soften, leading to poor durability. Moisture, such as rain or high humidity, prevent the filler from adhering correctly to the surface, potentially trapping water inside the crack, which worsen the damage. For optimal results, it’s important to fill cracks when the weather is stable and dry.
Can crack filling be a DIY project, or should professionals handle it?
Yes, crack filling can be a DIY project if the cracks are small and the right tools and materials are available. For minor cracks in driveways or sidewalks, homeowners use simple tools like a caulking gun and store-bought sealants to fill cracks themselves. However, it’s important to clean the crack thoroughly and follow the manufacturer’s instructions to ensure the filler is applied correctly. For larger or more complex cracks, especially on commercial pavements or roads, professional expertise is recommended. Professionals have access to industrial-grade materials and equipment, such as crack-filling machines and hot-pour fillers, which are required for durable and long-lasting repairs in larger areas.
What is the difference between crack filling and concrete resurfacing or overlays, and how do they work together?
Crack filling addresses specific localized damage by sealing or filling individual cracks, while concrete resurfacing and overlays involve applying a new layer over the entire surface. Crack filling is usually the first step in the resurfacing process, ensuring that the base is stable and free from imperfections before applying a resurfacing material or overlay. Overlays are typically thicker than resurfacing products, providing more structural support, while resurfacing focuses on renewing the appearance and smoothness of the surface. Both work together to extend the life of your concrete and improve its aesthetics.
